Electrical Chiller
An electrical chiller is a simple variant of a heat pump and is modelled as such: electricity as input and cooling and waste heat as output. For the energy balance to hold, a waste heat export must be modelled.
Note that the waste heat can also be reused as the input of another technology.
![](../../__attachments/105644033/image-20220216-134257.png?inst-v=2f78bef5-7c3c-4191-b7b2-479259a53e30)

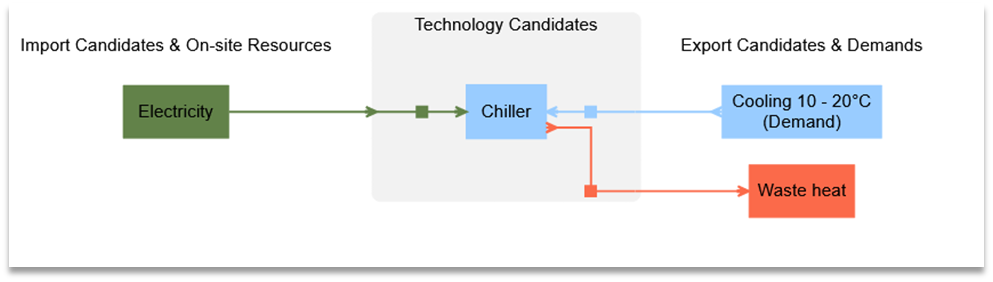

Figure 15 System diagram of an electrical chiller.
Video Tutorial
Set-up summary
Energy Carriers | Energy Demands | Imports | Exports | Supply technologies |
Chiller | ||||
Electricity |
| X |
| (primary) Input |
Waste heat |
|
| X | Output |
Cooling 10-20°C | X |
|
| Primary Output |
Set-up Implementation electrical chiller

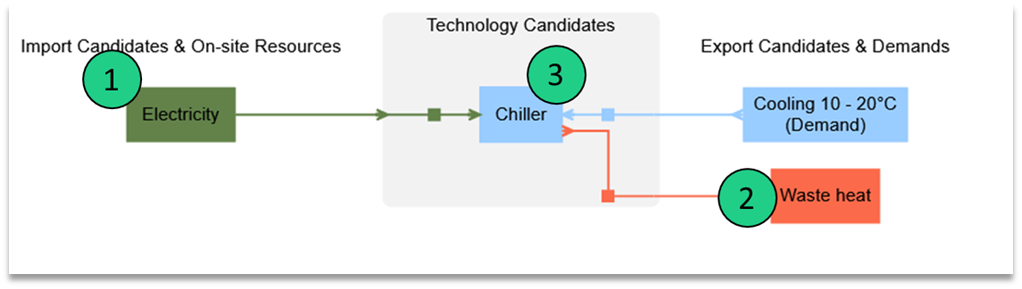

![](../../__attachments/105644033/image-20220216-142826.png?inst-v=2f78bef5-7c3c-4191-b7b2-479259a53e30)
Figure 16 Set up and implementation of an electrical chiller to generate cooling and waste heat.
When defining a heat pump in Sympheny, the following steps must be done:
Defining the energy carriers necessary (as displayed in the table under the ‘set-up summary’ section).
Defining the inputs (in this case, electricity) and the outputs (in this case waste heat) of the chiller within the imports & exports tab.
![](../../__attachments/105644033/electrical-chiller-1.png?inst-v=2f78bef5-7c3c-4191-b7b2-479259a53e30)

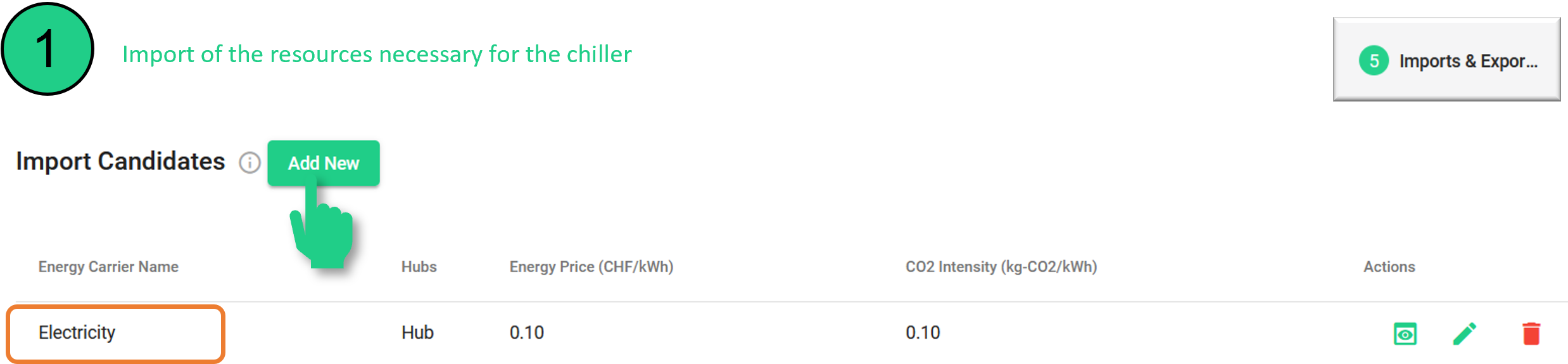

Figure 17 Definition of import candidates for an electrical chiller.
![](../../__attachments/105644033/electrical-chiller-2.png?inst-v=2f78bef5-7c3c-4191-b7b2-479259a53e30)

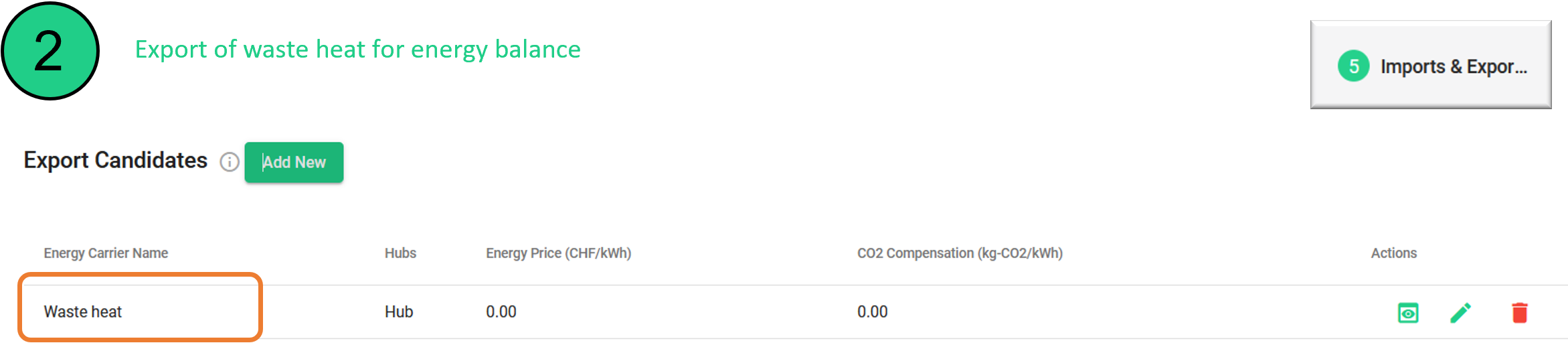

Figure 18 Definition of output energy carriers for an electrical chiller.
![](../../__attachments/105644033/electrical-chiller-3.png?inst-v=2f78bef5-7c3c-4191-b7b2-479259a53e30)

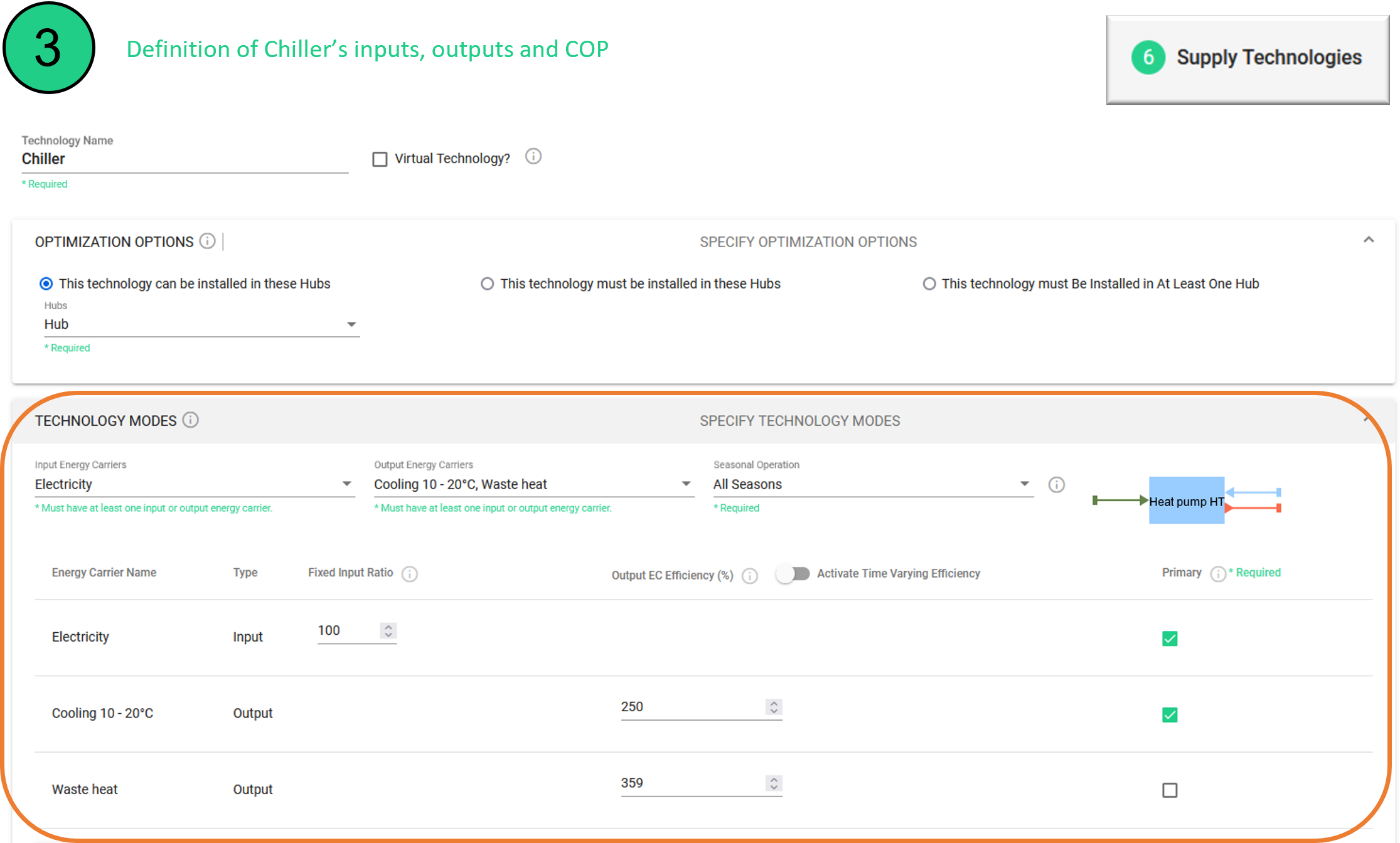

Figure 19 Definition of Chiller's input, outputs, and COP
